Strip fuse holder for battery-electric vehicles
SH – Fuse holder for strip fuses to DIN 43560
Strip fuse holder for battery-electric vehicles
SH series

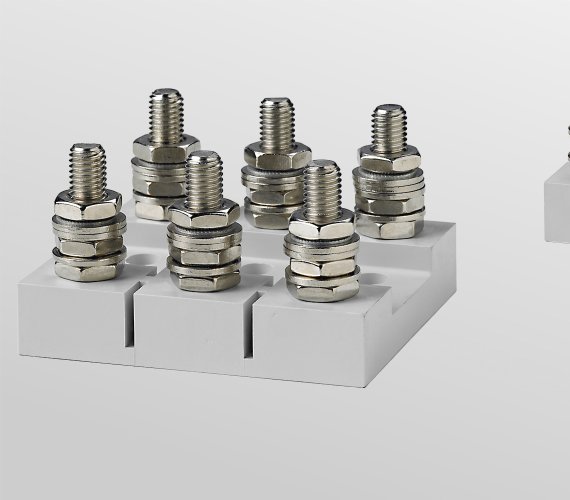

Fuse holders for strip fuses to DIN 43560 are designed for use in battery powered vehicles covering voltages up to 80 V. Fuse ratings may range from 50 A to 425 A.
We offer fuse holders admitting 1, 2 or 3 strip fuses. Tie bars for 2 or 3 poles are available. Copper sheet tie bars are available for our 2 and 3 pole fuse holders.
Features
- Fuse holders suitable for fuse links to DIN 43560
- 1, 2 or 3 pole styles
- Bases from heat-proof Duroplast
- Hex screws, nuts and washers from nickel-plated bars
- Optional tie bars
Accessories
- Tie bar 3 pole type, material thickness 3 mm, weight ca. 40 g
ordering code VS-SH-3P-65-3 - Tie bar 2 pole type, material thickness 4 mm, weight ca. 30 g
ordering code VS-SH-2P-32.5-4 - Tie bar 2 pole type, material thickness 3 mm, weight ca. 25 g
ordering code VS-C165-32.5
Specifications
SH-1P, SH-2P, SH-3P
| Type of voltage | DC, AC |
| Nominal voltage Un | 80 V |
| Rated insulation voltage Ui | 630 V |
| Conv. thermal current Ith | for strip fuses 50 A … 425 A |
| Temperature range | -40 °C … +70° C |
| Weight | 1 pole: 150 g / 2 pole: 300 g / 3 pole: 450 g |
