Single pole latching NO contactor (SPST-NO), thermal current 150 A
AFS819, AFS881 – Single pole latching NO contactors
Current rating 150, 250 A, coil voltage 12 - 120 V, nominal voltage 48 V, optional: coil suppression, blowouts, aux. switch

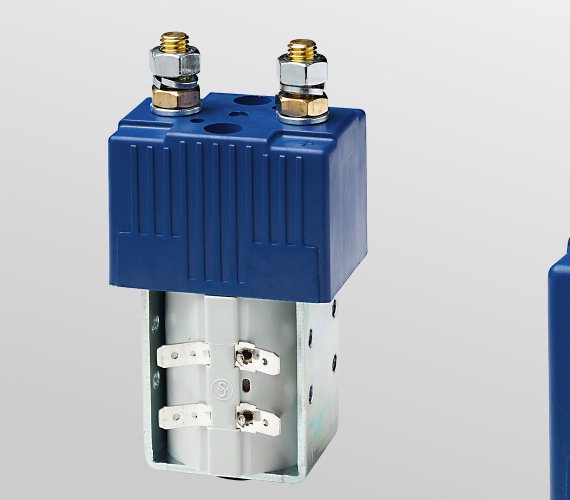

AFS819

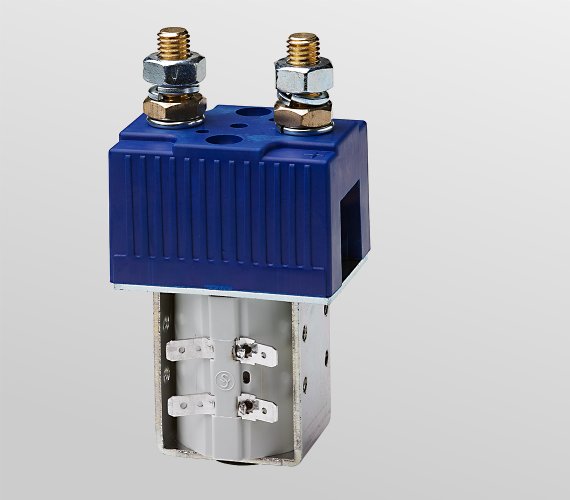

AFS881
Single pole latching NO contactor (SPST-NO), thermal current 250 A
Battery contactors for industrial trucks
AFS Series contactors are designed for use with electric vehicles in material handling. They are mainly used as motor contactors and much demanded as replacement and new contactors for most leading brands of trucks.
The latching DC NO contactors do not consume any energy to maintain a closed-circuit position for a long period of time, which makes them ideally suited for deep discharge protection of batteries. In addition to that, they allow for saving a lot of energy compared with other common commercial NO contactors.
Baureihenübersicht
| Ith | Kontaktsystem | Baureihe |
| 150 A | 1-polige Schließer (SPST-NO) bistabil | AFS819 |
| 250 A | 1-polige Schließer (SPST-NO) bistabil | AFS881 |
Series overview
| Ith | Contact configuration | Series |
| 150 A | SPST-NO latching option | AFS819 |
| 250 A | SPST-NO latching option | AFS881 |
Specifications
AFS819-AFS881
| Conv. thermal current Ith | 150 A, 250 A |
| Contact tips | Standard, large, textured |
| Coil options | Standard, wrapped |
| Contact configuration | SPST-NO |
| Coil voltage Us | 12 V – 120 V |
| Duty cycle | Continuous, intermittent, prolonged |
| Blowouts | Optional |
| Enclosed top cover | Optional |
| Auxiliary switches | Optional |
| Coil suppression | Optional |
| Mounting bracket | Optional |
| Bespoke arrangement | Available |
| Coil terminals | Spade terminals 6.3 x 0.8 mm |
| Load terminals | Studs, M8 |
| Mechanical endurance | > 1 million cycles |
| Rating at 25% duty cycle | 275 A, 475 A |
| Rating at 50% duty cycle | 225 A, 360 A |
| Rating at 100% duty cycle | 150 A, 250 A |
| Rated voltage no blowouts | 48 V max. |
| Rated voltage with blowouts | 96 V max. |
| Maximum pull-in voltage, intermittently rated coils | 60% nominal voltage |
| Maximum pull-in voltage, continuously rated coils | 66% nominal voltage |
| Typical drop-out voltage | 15% nominal voltage |
